Rare Earth Elements: Analysis, Detection Methods & Material Testing
What Are Rare Earth Elements?
Rare earth elements (REEs) are a group of 17 metallic elements comprising the 15 lanthanides (lanthanum through lutetium on the periodic table) plus scandium and yttrium — which are chemically similar and typically found in the same ore deposits. Despite the name, most rare earth elements are not geologically rare — cerium is more abundant in the Earth’s crust than copper — but they are rarely found in economically concentrations and are challenging to separate from one another due to their highly similar chemical properties.
REEs have become strategically critical materials in modern technology — powering the permanent magnets in EV motors and wind turbines, enabling phosphor luminescence in LED and display technologies, catalyzing petroleum refining, and providing the thermal stability coatings on aircraft turbine blades. Testing and characterizing rare earth element content is essential for mining, processing, materials manufacturing, and advanced technology industries.
Why Rare Earth Elements Are Strategically Critical
The unique electronic structures of lanthanide elements — partially filled 4f orbitals — create extraordinary magnetic, optical, and catalytic properties not found in any other element group:
- Neodymium (Nd) and praseodymium (Pr): Core components of Nd₂Fe₁₄B permanent magnets — the strongest permanent magnets known, enabling compact, lightweight motors for EVs, hard disk drives, and wind turbine generators
- Dysprosium (Dy) and terbium (Tb): Coercivity enhancers added to Nd magnets to maintain performance at elevated temperatures
- Cerium (Ce) and lanthanum (La): Fluid catalytic cracking (FCC) catalysts in petroleum refining; glass polishing compounds; automotive catalytic converters
- Europium (Eu), terbium (Tb), yttrium (Y): Red, green, and blue phosphors in fluorescent lamps and LED displays
- Yttrium (Y) and lanthanum (La) in yttria-stabilized zirconia (YSZ): Thermal barrier coating for gas turbine blades
- Gadolinium (Gd): MRI contrast agents; neutron absorber in nuclear control rods
- Holmium (Ho), erbium (Er), ytterbium (Yb): Laser gain media and optical fiber amplifiers

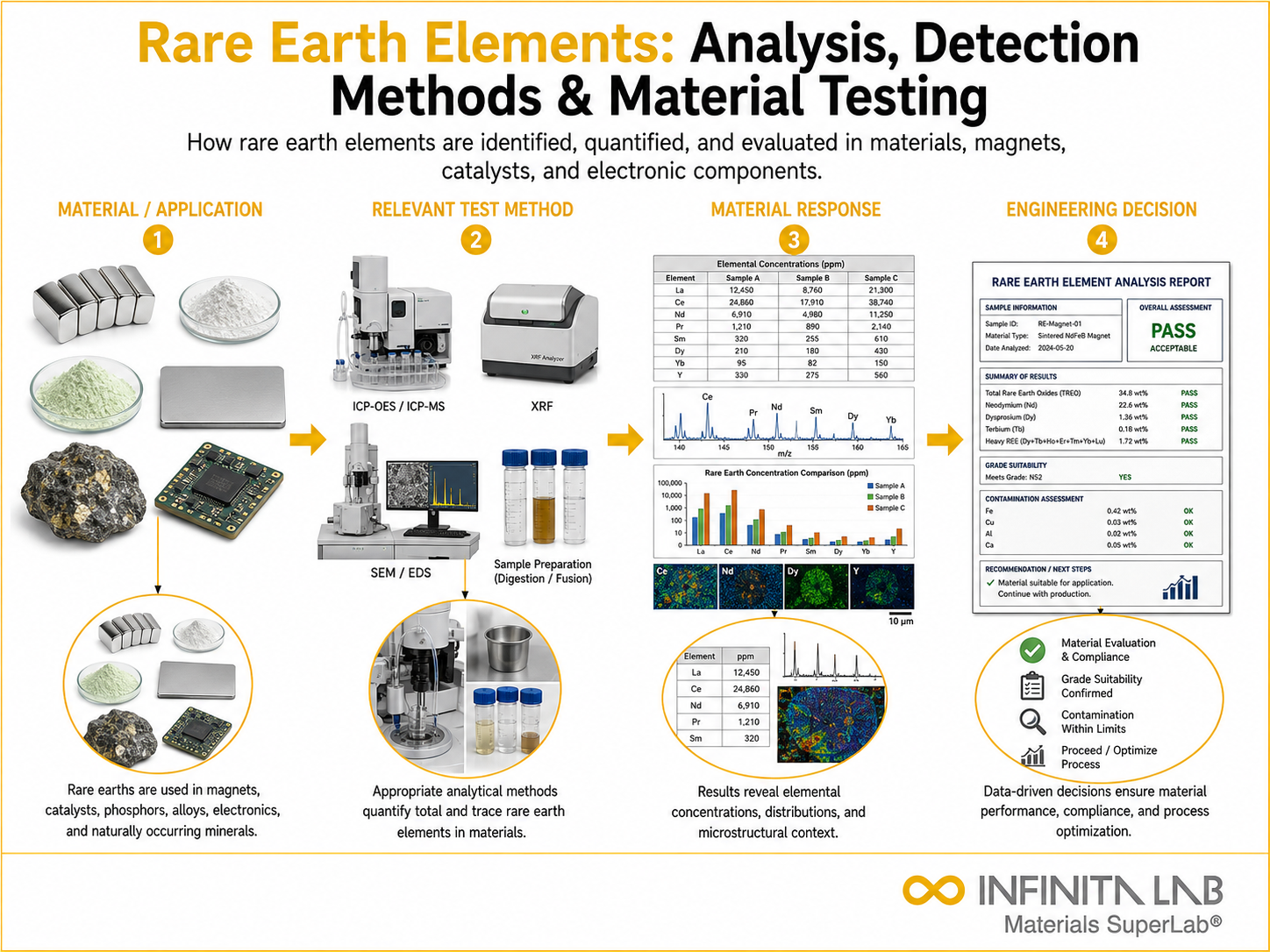

REE Analytical Testing Methods
ICP-MS (Inductively Coupled Plasma Mass Spectrometry)
The gold standard for REE trace and ultra-trace analysis — capable of detecting all lanthanides simultaneously at concentrations below 1 ppb in geological, environmental, and process samples. ICP-MS is used for:
- REE fingerprinting of ore deposits (geochemical provenance)
- Process stream monitoring in REE separation facilities
- Impurity analysis in high-purity REE oxide and metal products
ICP-OES (Inductively Coupled Plasma Optical Emission Spectrometry)
For percent-level REE analysis in ores, concentrates, and oxide products. Lower sensitivity than ICP-MS but higher throughput — suited for production quality control in mining and REE processing operations.
X-Ray Fluorescence (XRF)
Non-destructive elemental analysis at percent levels — used for bulk ore composition screening and REE product purity verification. Portable XRF enables rapid field analysis of drill cores and mine face samples.
Wavelength Dispersive XRF (WDXRF)
Higher resolution and sensitivity than energy dispersive EDXRF — suitable for accurate REE oxide analysis in finished products and certified reference materials where accuracy to 0.01% is required.
Glow Discharge Mass Spectrometry (GDMS)
For ultra-trace impurity analysis in high-purity REE metals (99.99–99.999% purity) — detecting impurities at ppt levels relevant to semiconductor and specialty optics applications where trace impurities affect performance.
REE Mineral Characterization
Beyond elemental analysis, REE mineralogy characterizes which minerals carry the REE and how they are distributed — critical for ore processing circuit design:
- SEM/EDS mineral liberation analysis (MLA): Quantifies REE-bearing mineral species, grain size, and liberation degree
- EPMA (Electron Probe Microanalysis): Point-to-point chemical composition of individual REE mineral grains at micron scale
- XRD: Phase identification of REE minerals (bastnäsite, monazite, xenotime, allanite)
Conclusion
Rare earth elements sit at the intersection of high technology and critical resource security — their unique properties are irreplaceable in the clean energy, advanced electronics, and aerospace applications that define the 21st-century economy. Accurate analytical testing — from field XRF screening of ore samples to ICP-MS verification of high-purity REE products — is essential throughout the REE value chain to ensure that materials meet the specifications on which advanced technology products depend.
Partnering with Infinita Lab for Rare Earth Element Analysis
Infinita Lab addresses the most frustrating pain points in the REE testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most — innovation. From ICP-MS trace analysis to WDXRF and GDMS, Infinita Lab orchestrates every detail, fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
Why are rare earth elements difficult to separate from each other in processing? Lanthanides are chemically extremely similar — they share the same +3 oxidation state and have nearly identical ionic radii. Conventional precipitation and solvent extraction separation processes achieve only small separation factors per stage, requiring hundreds of stages (mixer-settlers or centrifugal contactors) to achieve the >99.99% purities required for magnet and phosphor applications.
What is the critical REE supply chain concern for EV motors? Neodymium and dysprosium — key components of Nd-Fe-B permanent magnets used in EV traction motors — are currently produced predominantly in China (~85% of global supply). Supply chain concentration creates strategic vulnerability for EV manufacturers dependent on these magnets. This has driven investment in REE mining outside China, magnet recycling programs, and magnet design to minimize heavy REE (Dy, Tb) usage.
How does ICP-MS detect all 15 lanthanides simultaneously? ICP-MS separates ions by mass-to-charge ratio (m/z) using a quadrupole or sector-field mass analyzer. Each lanthanide element has unique isotopes at distinct m/z values — by scanning the mass spectrum, all lanthanide isotopes are detected sequentially in a single analysis. Spectroscopic interference corrections handle isobaric overlaps (e.g., ¹⁵⁶Gd interfering with ¹⁵⁶Dy).
What analytical technique is used to measure REE content in neodymium magnets? Nd-Fe-B magnets are typically analyzed by ICP-OES or ICP-MS after acid dissolution. The major components (Nd, Pr, Dy, Tb, Fe, B) are measured by ICP-OES; trace impurities by ICP-MS. WDXRF provides non-destructive bulk composition screening. EPMA characterizes individual grain compositions within the magnet microstructure — mapping Nd-rich grain boundary phases critical to coercivity.
Can XRF alone be used for REE ore grade estimation? Handheld XRF provides rapid, non-destructive REE screening — useful for field exploration and core logging. However, light REEs (La, Ce, Pr) are challenging to detect at low concentrations by portable XRF due to low-energy X-ray absorption. Laboratory WDXRF or dissolution-based ICP methods are required for certified grade determination used in resource reporting (JORC, NI 43-101).
