Metallographic Cold Mounting Press: Methods, Mounting Materials, and Sample Preparation Applications

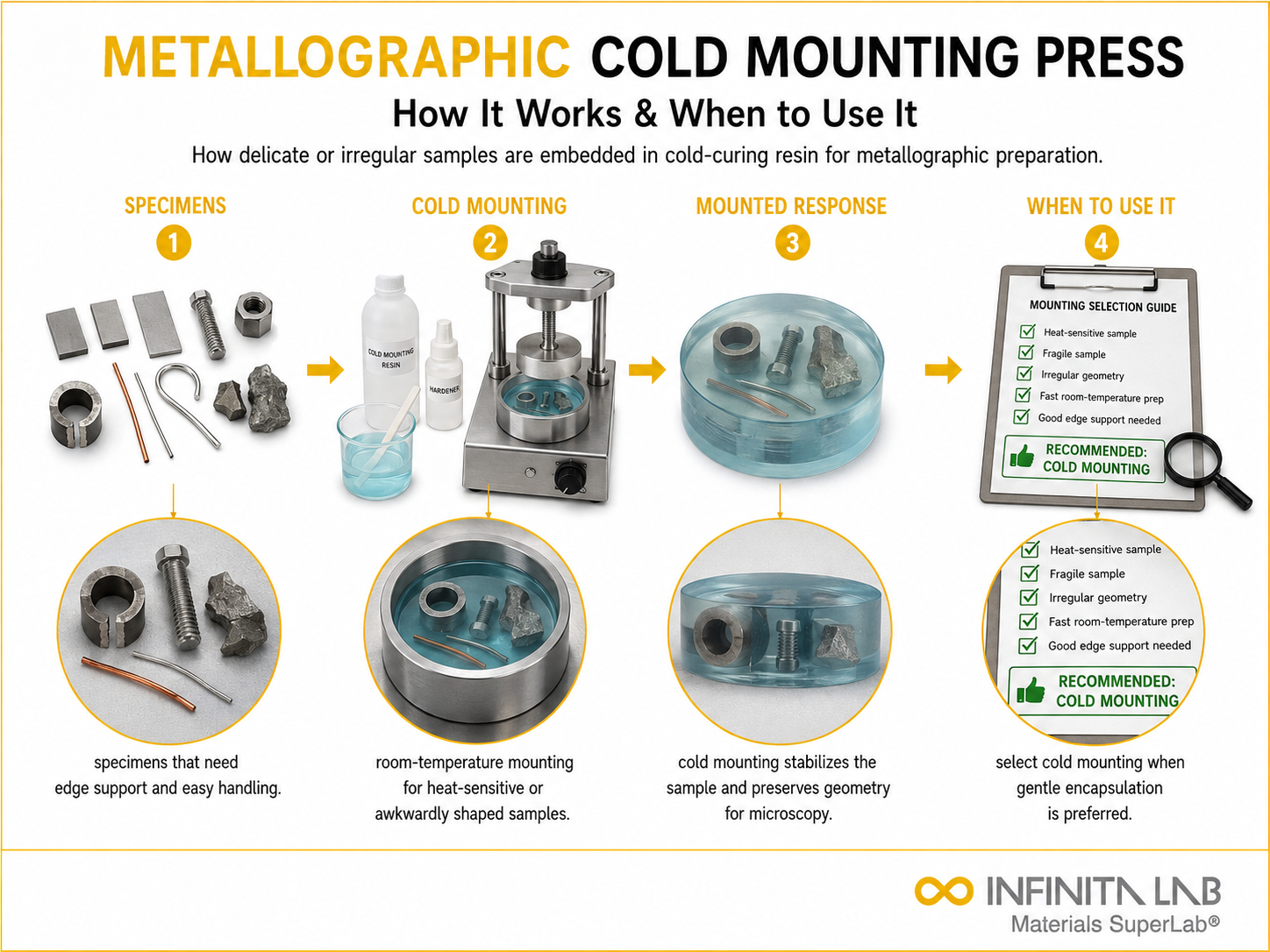

A standard setup for cold mounting using a silicone mold and two-part resin.Cold mounting is a metallographic specimen preparation technique that encapsulates samples in resin at room temperature without the heat and pressure of hot compression mounting. Cold mounting is essential for temperature-sensitive materials, electronic assemblies, coated specimens, and porous materials that would be damaged by the 150–180°C temperatures used in hot mounting. Proper cold mounting technique ensures flat, parallel surfaces, good edge retention, and compatibility with subsequent grinding, polishing, and analysis steps. For companies seeking metallographic preparation at a USA-based testing lab, Infinita Lab provides comprehensive metallography services through its accredited network of over 2,000 partner labs.
How Cold Mounting Works
The specimen is placed in a mold (silicone, plastic, or reusable ring), and a two-part resin system (liquid resin plus hardener or powder plus liquid) is mixed and poured around the specimen. The resin cures at room temperature through an exothermic chemical reaction, typically within 8–60 minutes depending on the resin system. Vacuum impregnation may be used for porous specimens to fill voids and improve edge retention.
Cold Mounting Resin Types
Epoxy Systems
Two-part epoxy resins provide the best edge retention, transparency, and adhesion to the specimen. Cure times range from 20 minutes (fast cure) to 8–12 hours (standard cure). Epoxies are preferred for electronic components, coated surfaces, and precision metallographic work.
Acrylic (Methyl Methacrylate) Systems
Fast-curing acrylic resins (5–10-minute cure) enable rapid mounting for production-volume metallography. They generate more heat during cure than epoxies and provide slightly lower edge retention, but their speed makes them ideal for high-throughput quality control laboratories.
When to Use Cold Mounting vs Hot Mounting
Cold mounting is required for temperature-sensitive materials, electronic assemblies with solder joints, specimens with coatings or thin films, porous or infiltrated materials, and large or irregularly shaped specimens that don’t fit in a hot mounting press.
Why Choose Infinita Lab for Metallography Services?
Infinita Lab is a leading provider of Metallography Services and streamlined material testing services, addressing the critical challenges faced by emerging businesses and established enterprises. With access to a vast network of over 2,000+ accredited partner labs across the United States, Infinita Lab ensures rapid, accurate, and cost-effective testing solutions. The company’s unique value proposition includes comprehensive project management, confidentiality assurance, and seamless communication through a Single Point of Contact (SPOC) model. By eliminating inefficiencies in traditional material testing workflows, Infinita Lab accelerates research and development (R&D) processes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is cold mounting in metallography? Cold mounting encapsulates metallographic specimens in room-temperature-curing resin (epoxy or acrylic) without the heat and pressure of hot mounting, protecting temperature-sensitive materials and features.
When should cold mounting be used? Cold mounting is required for electronic assemblies, solder joints, coated surfaces, porous materials, temperature-sensitive polymers, and any specimen that would be damaged by the 150–180°C temperatures of hot mounting.
What is the difference between epoxy and acrylic cold mounting? Epoxy provides superior edge retention, transparency, and adhesion, but requires 20–60+ minutes to cure. Acrylic cures in 5–10 minutes with slightly lower performance, ideal for high-throughput quality control.
What is vacuum impregnation in cold mounting? Vacuum removes air from porous specimens before resin infiltration, ensuring complete filling of voids, cracks, and pores. This improves edge retention and prevents pullout during grinding and polishing.
What ASTM standard covers metallographic mounting? ASTM E3 covers all aspects of metallographic specimen preparation, including mounting. It describes both hot and cold mounting techniques, resin selection, and best practices for specimen encapsulation.
