Fractionation in Material Testing: Methods, Applications & Analysis

What Is Fractionation in Materials Testing?

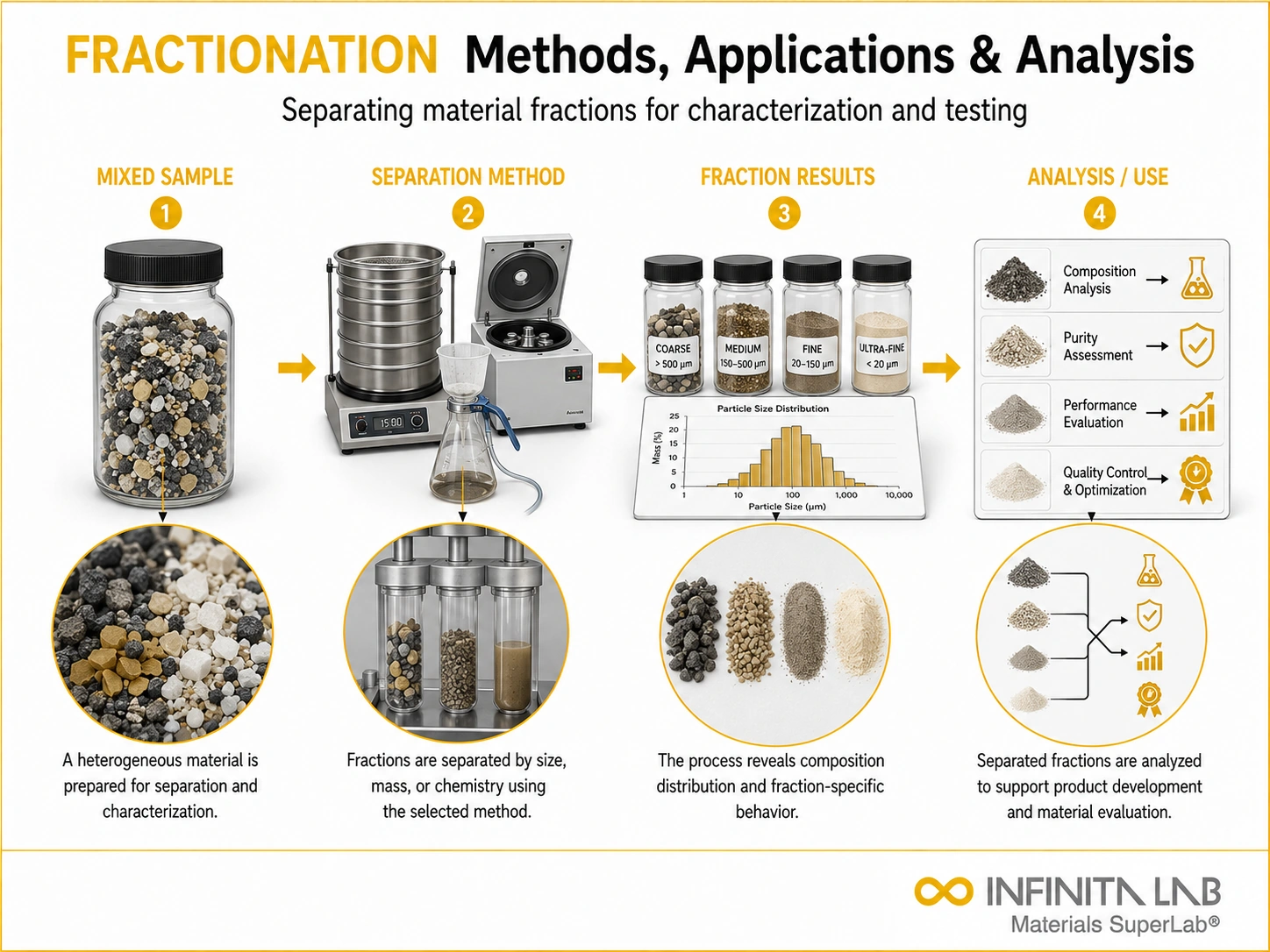

Fractionation is the process of separating a complex mixture into distinct fractions — groups of components sharing similar chemical or physical properties — to enable detailed characterization of each fraction independently. In materials testing, fractionation is applied to complex polymer systems, petroleum products, environmental matrices, biological materials, and chemical mixtures to:

• Identify and quantify specific components within a complex mixture
• Remove interfering matrix components before trace analysis
• Characterize the molecular weight or compositional distribution of polymers
• Separate hydrocarbon types in petroleum products
• Isolate and characterize specific polymer grades or contaminants in recycled materials.

Fractionation techniques range from classical wet chemistry separations (column chromatography, liquid-liquid extraction) to sophisticated coupled separation-detection systems (SEC-MALS, GPC, HPLC-MS) that provide both separation and real-time characterization in a single analytical run.

Major Fractionation Techniques in Materials Testing

Gel Permeation Chromatography (GPC) / Size Exclusion Chromatography (SEC)

GPC/SEC is the most widely used polymer fractionation technique — separating polymer chains by hydrodynamic volume (related to molecular weight) as they pass through a porous column packing. Larger chains elute first (cannot penetrate smaller pores); smaller chains elute later (access more pore volume). The resulting chromatogram provides the complete molecular weight distribution (MWD) of the polymer, including:

• Number-average molecular weight (Mn)
• Weight-average molecular weight (Mw)
• Dispersity Đ = Mw/Mn (polydispersity)
• Z-average molecular weight (Mz)
• High and low molecular weight tail fractions

GPC is performed in different solvents for different polymer classes — THF for the most common thermoplastics, DMAc or DMF for polyamides and polyurethanes, 1,2,4-TCB at 150°C for polyolefins (HDPE, PP, LLDPE).

Standards: ASTM D5296 (polystyrene calibration), ASTM D6474 (polyolefins by high-temperature GPC).

SARA Fractionation (Saturates, Aromatics, Resins, Asphaltenes)

The SARA analysis separates crude oil and heavy petroleum products into four chemical families by sequential solvent elution from column chromatography:

1. Saturates (paraffinic and naphthenic hydrocarbons) — eluted with n-heptane
2. Aromatics (mono-, di-, poly-aromatic hydrocarbons) — eluted with toluene
3. Resins (polar aromatic compounds) — eluted with methanol/toluene
4. Asphaltenes (heaviest, most polar fraction) — precipitated by n-heptane

SARA composition directly predicts crude oil viscosity, wax appearance temperature, refinery processing behavior, and pipeline flow assurance challenges.

Standard: ASTM D2007 (IP 143), ASTM D4124.

Solvent Fractionation of Polymers

Stepwise precipitation or extraction with solvents of increasing solubility power separates polymer fractions by tacticity, crystallinity, comonomer content, or molecular weight. For polypropylene, solvent fractionation (diethyl ether → hexane → heptane → octane → decalin) separates:

• Atactic PP (low crystallinity, soluble in cold ether)
• Isotactic PP fractions of increasing crystallinity (eluting at increasing temperatures/solvent power)
• Syndiotactic PP

Fractionation results guide the development of polymerization catalysts and the quality control of PP grades for specific applications.

Liquid-Liquid Extraction (LLE) and Solid-Phase Extraction (SPE)

LLE partitions analytes between two immiscible liquid phases — separating target compounds from complex matrices. SPE uses sorptive solid phases in cartridges or discs to selectively retain target compounds while allowing interferences to pass through.

Both techniques are extensively used in:

• Environmental sample preparation (extracting organic contaminants from water before GC/MS analysis)
• Plastics extractables and leachables testing — separating polymer additive fractions (UV stabilizers, antioxidants, plasticizers) from complex polymer extracts before HPLC or GC/MS identification.
• Food packaging migration testing — fractionating migrating substances from food simulants

Thermal Fractionation (CRYSTAF, TREF)

Temperature Rising Elution Fractionation (TREF) and Crystallization Analysis Fractionation (CRYSTAF) separate polyolefins (LLDPE, LDPE, PP)based on crystallizability, which reflects comonomer content and chain-branching distribution. Short-chain branched LLDPE fractions crystallize at lower temperatures than linear HDPE fractions.

TREF is the definitive technique for characterizing heterogeneity in comonomer distribution in polyolefins — distinguishing reactor blend components in impact copolymer PP and heterophasic ethylene-propylene copolymers.

Industry Applications

Polymer Quality Control: GPC molecular weight distribution characterization for incoming resin qualification, lot-to-lot consistency verification, and degradation monitoring in recycled polymers — ensuring that MW distribution meets specification before processing.

Petroleum Refining: SARA analysis guides crude oil blending, refinery process selection, and pipeline flow assurance planning — SARA composition directly predicts refinery yields and product quality.

Environmental Analysis: SPE cleanup and concentration of environmental water samples before GC/MS analysis of pesticides, PAHs, and other organic contaminants — enabling trace-level quantification in complex matrix backgrounds.

Regulatory Compliance: Extractables and leachables fractionation for medical device, pharmaceutical packaging, and food contact material testing — separating and identifying specific migrating substances for regulatory safety assessment.

Polymer Forensics: Fractionation of recycled polymer streams identifies blend composition, detects unauthorized materials, and characterizes molecular weight degradation — supporting material characterization in contamination investigations and quality disputes.

Conclusion

Fractionation in materials testing — spanning GPC/SEC molecular weight distribution, SARA petroleum analysis, solvent and thermal fractionation of polyolefins, and SPE/LLE sample preparation per ASTM standardized protocols — provides the compositional resolution and molecular characterization data that bulk analysis alone cannot deliver, enabling precise quality control, regulatory compliance, and forensic investigation across polymer, petroleum, environmental, and food contact material applications. Selecting the right fractionation technique for the specific mixture complexity, target analyte, and analytical objective determines whether the separation results accurately represent the true compositional distribution — making fractionation method design as fundamental to rigorous materials characterization as any downstream detection or quantification technique.
