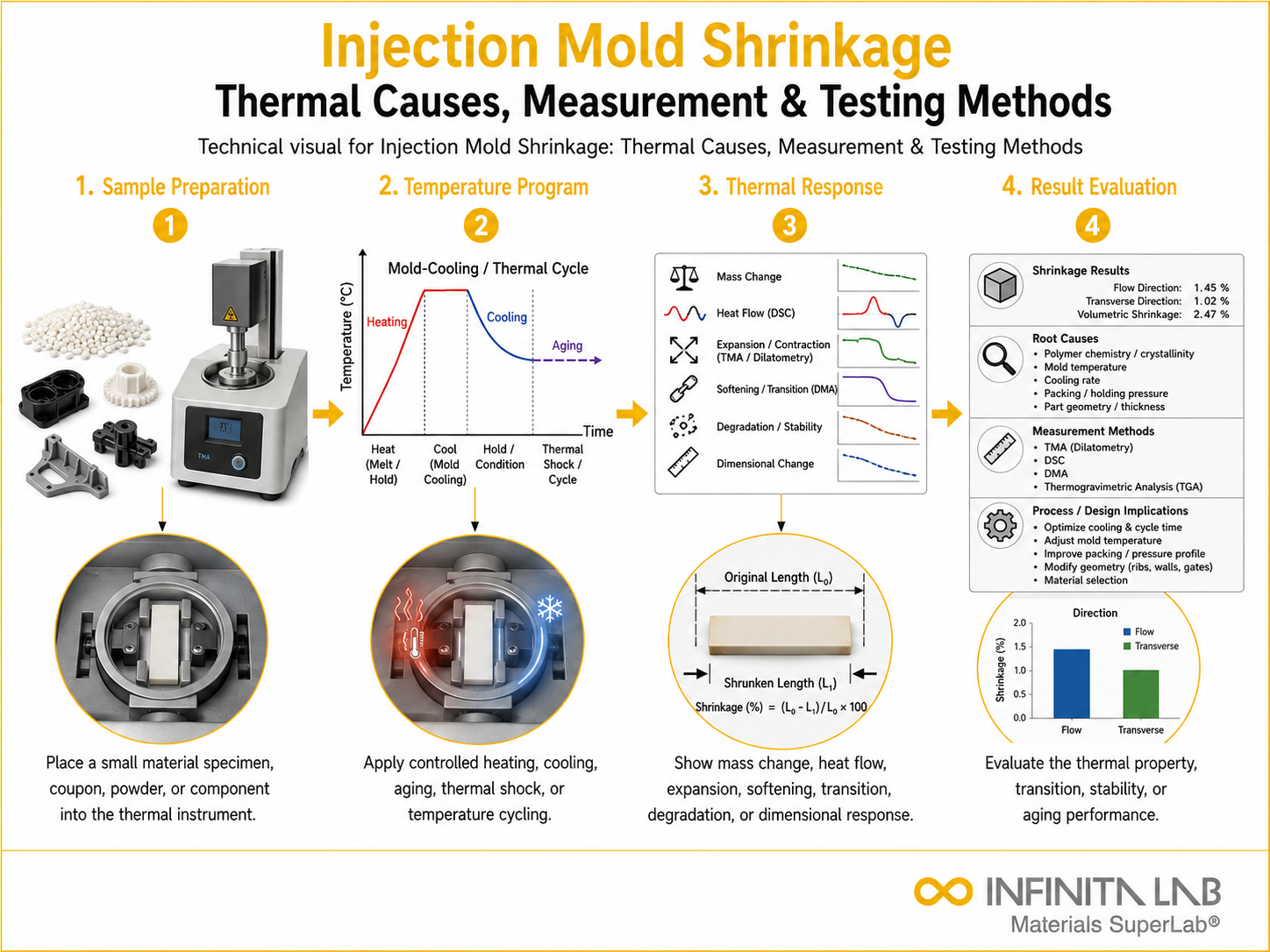

What Is Injection Mold Shrinkage?
Injection mold shrinkage is the dimensional reduction that occurs when a molded polymer part cools from melt temperature inside the mold to ambient conditions and then continues to change dimensions during post-mold cooling and aging. All thermoplastic polymers shrink during solidification, and managing this shrinkage is one of the most fundamental challenges in injection mold design and polymer part manufacturing.
Accurate prediction and control of mold shrinkage is essential in the automotive, consumer electronics, medical device, and precision engineering industries, where tight dimensional tolerances must be maintained for assembly fit and function.
Why Does Injection Mold Shrinkage Occur?
When a polymer melt is injected into a mold and cools, two mechanisms drive dimensional reduction:
Thermal Contraction
All materials contract as they cool. Polymers have significantly higher coefficients of thermal expansion (CTE) than metals—typically 5–15 times higher than steel—resulting in substantial volumetric shrinkage during cooling from melt to solid.
Crystallization Shrinkage
Semi-crystalline polymers (PP, PE, PA, POM, PBT) undergo an additional volumetric contraction as polymer chains reorganise into crystalline structures during cooling. This crystallisation shrinkage is superimposed on thermal contraction and can be substantial—contributing 1–3% additional linear shrinkage compared to amorphous polymers.
Typical Mould Shrinkage Values
Polymer | Typical Mold Shrinkage (%) |
Polypropylene (PP) | 1.5–2.5 |
Polyamide 6 (PA6) | 0.6–1.4 |
Polycarbonate (PC) | 0.5–0.7 |
ABS | 0.4–0.7 |
POM (Acetal) | 1.8–2.5 |
HDPE | 1.5–3.0 |
PBT (30% GF) | 0.3–0.8 |
Factors Affecting Mold Shrinkage
Wall Thickness
Thicker sections cool more slowly, allowing more crystallisation and greater shrinkage. Differential shrinkage between thick and thin sections causes warpage.
Mold Temperature
Higher mold temperatures promote crystallinity and increase shrinkage in semi-crystalline polymers. Lower mold temperatures freeze-in less crystallinity, reducing shrinkage but potentially reducing physical properties.
Packing Pressure and Time
Higher packing pressure compresses additional melt into the cavity, compensating for volumetric shrinkage and reducing the final part shrinkage. Inadequate packing causes excessive shrinkage and sink marks.
Gate Location and Size
The gate location determines where the highest packing pressure is applied. Parts shrink most in regions farthest from the gate, where packing is least effective.
Fiber Reinforcement
Glass or carbon fibre reinforcement constrains polymer shrinkage in the flow direction, dramatically reducing anisotropic shrinkage. Filled polymers show differential shrinkage between flow and cross-flow directions, which must be accounted for in mold design.
Measuring Mold Shrinkage
ASTM D955 and ISO 294 define standard methods for measuring injection mold shrinkage using standardised test plaques. Key measurements include:
- In-mold shrinkage: Difference between cavity dimension and part dimension at 24 hours post-molding.
- Post-mold shrinkage: Dimensional change after extended conditioning (commonly 48 hours at 23°C/50% RH per ISO 294-4).
Controlling Shrinkage in Practice
- Optimise packing pressure and time through systematic design of experiments (DoE)
- Use simulation software (Moldflow, Moldex3D) to predict shrinkage and warpage before cutting steel
- Select materials with controlled shrinkage specifications for tight-tolerance applications
- Maintain consistent mold temperature with conformal cooling channels
Conclusion
Injection mold shrinkage is an inherent and critical aspect of polymer processing that directly impacts part accuracy, fit, and performance. By understanding the combined effects of thermal contraction, crystallisation, and processing conditions, manufacturers can better predict and control dimensional changes. Effective management through material selection, mold design, and optimised processing parameters ensures consistent quality, minimises defects like warpage and sink marks, and enables reliable production of precision components across industries.
