GaAs Integrated Circuit Defect Analysis & Testing: Methods Guide
Gallium arsenide (GaAs) and other III-V compound semiconductors pose unique failure-analysis challenges compared to silicon-based integrated circuits. Their distinct crystal structures, optical properties, and processing requirements demand specialized analytical techniques and expertise. III-V semiconductors are essential for high-frequency RF/microwave devices, optoelectronics, power amplifiers, and photovoltaic applications in the aerospace, telecommunications, and defense industries. For companies seeking III-V semiconductor failure analysis at a US-based testing lab, Infinita Lab provides advanced analytical services through its accredited laboratory network.
Why III-V Semiconductors Are Different
GaAs and other III-V materials (InP, GaN, InGaAs) differ from silicon in several critical ways: they are compound semiconductors with two or more elements, they have direct bandgaps enabling efficient light emission, they are mechanically fragile and prone to cleaving, and they require different process chemistries for etching and deposition. These differences mean that failure analysis techniques optimized for silicon often need significant modification for III-V devices.
Common III-V IC Defect Types
Crystal Defects
Threading dislocations, stacking faults, and antiphase boundaries are more prevalent in III-V epitaxial layers than in silicon. These crystal defects degrade device performance by creating leakage paths, reducing carrier mobility, and acting as non-radiative recombination centers.
Ohmic Contact and Gate Failures
GaAs FETs and HEMTs rely on precisely controlled ohmic contacts and Schottky gates. Contact degradation due to interdiffusion, voiding, or contamination can increase resistance or cause open circuits. The gate metal sinking into the semiconductor creates short circuits.
Surface and Passivation Defects
III-V surfaces are chemically active and prone to oxidation and contamination. Inadequate passivation creates surface states that cause current leakage, threshold-voltage instability, and reduced breakdown voltage in high-power devices.

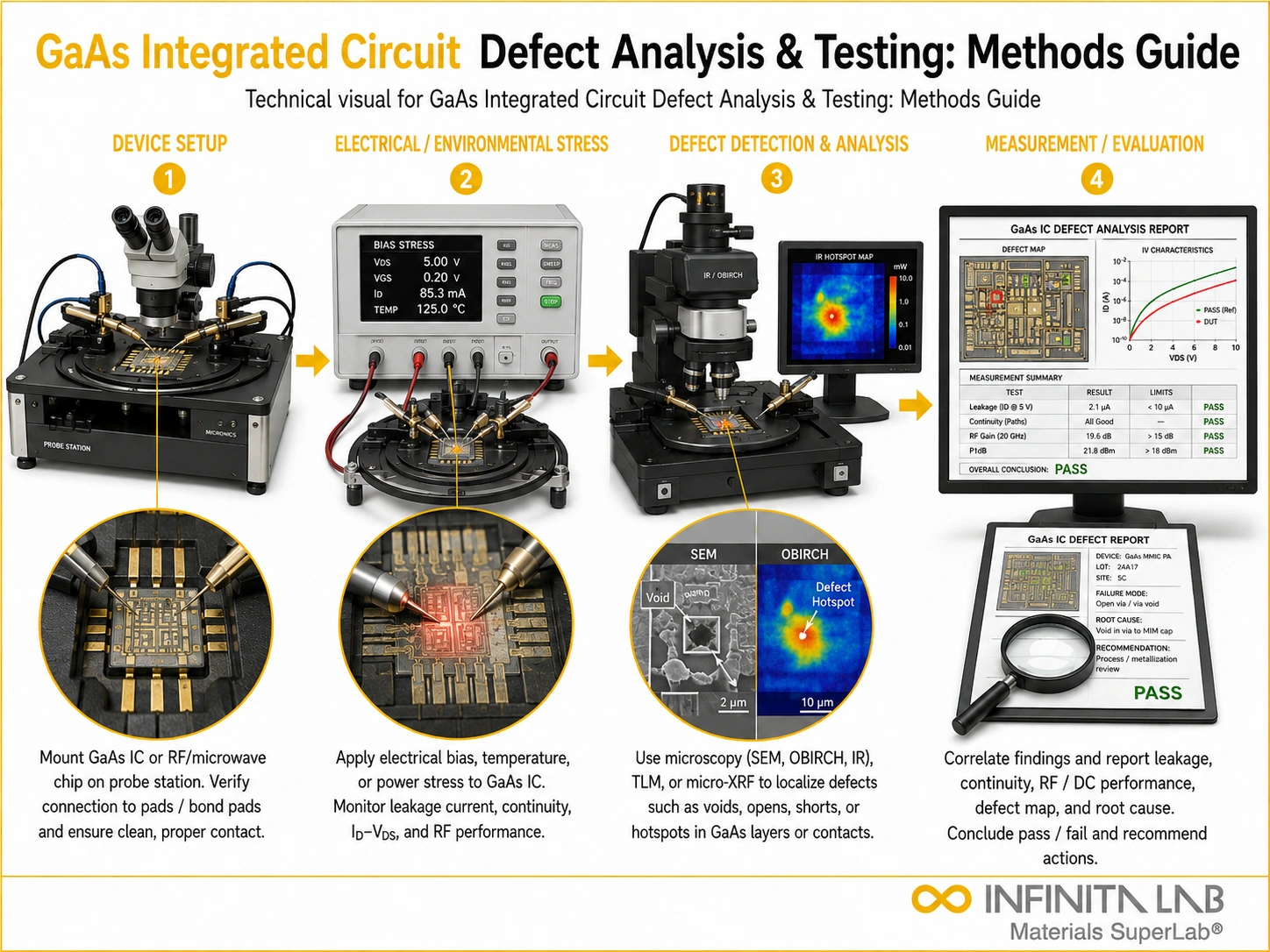

Failure Analysis Techniques for III-V Devices
Specialized techniques include photoemission microscopy (PEM) for fault localization, electron beam induced current (EBIC) for junction analysis, cathodoluminescence for crystal defect mapping, focused ion beam (FIB) cross-sectioning and TEM for nanoscale structural analysis, and Auger electron spectroscopy (AES) for surface compositional analysis. These methods address the unique optical and material properties of III-V compounds.
Infinita Lab: Your Material Testing Partner
Contact Infinita Lab for III-V Semiconductor Analysis testing and enjoy major benefits like end-to-end testing management, faster turnaround, and reduced administrative burden. Gain confidence in accurate results and reduced stress in vendor coordination. Enhance your reputation for product reliability and innovation. Engineers and R&D managers can focus on core work rather than testing logistics.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What are III-V semiconductors? III-V semiconductors are compound materials formed from elements in groups III (Ga, In, Al) and V (As, P, N) of the periodic table. Examples include GaAs, InP, GaN, and InGaAs, each offering unique electronic and optical properties.
Why is GaAs failure analysis more challenging than silicon? GaAs is mechanically fragile, chemically reactive, contains multiple elements requiring compositional analysis, and has different defect physics than silicon. Standard silicon FA techniques often require modification for III-V materials.
What applications use GaAs integrated circuits? GaAs ICs are used in RF power amplifiers (5G, cellular), satellite communications, radar systems, fiber-optic transceivers, and high-speed data converters in the telecommunications, aerospace, and defense industries.
What defects are unique to III-V semiconductors? Antiphase boundaries, variations in compound stoichiometry, surface Fermi-level pinning, and gate-metal sinking are specific to III-V devices. Compound semiconductor epitaxy also produces unique dislocation types.
How are III-V IC defects localized? Photoemission microscopy (PEM), optical beam-induced resistance change (OBIRCH), electron beam-induced current (EBIC), and cathodoluminescence imaging are key techniques for localizing defects in III-V integrated circuits.
