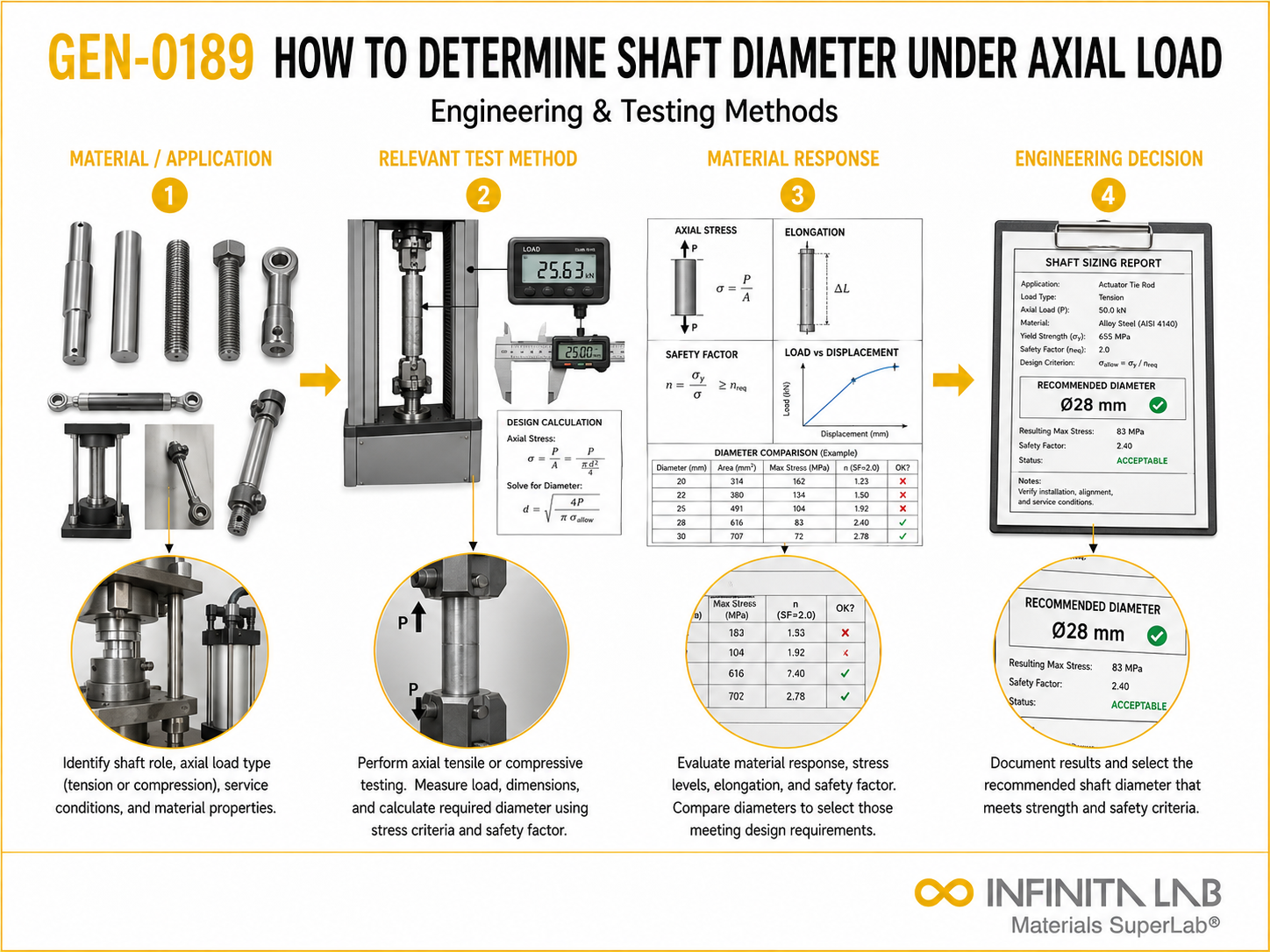

How to Determine Shaft Diameter Under Axial Load: Engineering & Testing Methods
What Is Shaft Diameter Determination Under Axial Load?
Shaft diameter determination under axial load is a mechanical measurement and analysis process used to characterize how a shaft or cylindrical component’s cross-sectional dimensions change under axial compressive or tensile forces. When an axial load is applied to a shaft, Poisson’s ratio is the transverse (radial) dimensional change — the shaft expands slightly in diameter under compression and contracts under tension.
Beyond elastic Poisson coupling, shafts under axial load may also experience plastic deformation, buckling, or surface damage that permanently alters their diameter — making precise dimensional measurement under and after loading critical for engineering design, quality control, and failure analysis of rotating machinery shafts, fasteners, structural columns, and precision mechanical components.
Why Shaft Dimensional Behavior Matters
Design and Tolerance Management
In power transmission, bearing fits, seals, and coupling interfaces, shaft diameter tolerances are defined at zero load. However, service loads — axial pre-tension in bolt shanks, press-fit assembly forces, dynamic axial thrust loads in gear and thrust bearing systems — alter the effective diameter at the critical interface. Understanding and measuring these changes ensures interference fits remain within specification under service loading.
Fastener Shank Behavior
High-strength bolts under installation pre-tension elongate axially while their shanks contract diametrically due to Poisson’s contraction. Poisson’s contraction affects thread engagement depth. It can influence self-loosening behavior under cyclic axial or transverse loading.
Compression Members
Columns and struts under compressive axial loads experience transverse expansion — potentially affecting clearance fits, bearing alignment, and buckling initiation from geometric imperfection.
Failure Analysis
Shaft failures in rotating machinery often involve permanent dimensional changes — bending fatigue causes surface damage and material redistribution; fretting wear at press fits reduces effective contact diameter; overload causes plastic deformation. Precise before-and-after dimensional measurements are critical in failure analysis programs.
Measurement Techniques for Shaft Diameter Under Axial Load
Contact Measurement
Micrometers and Snap Gauges: Conventional outside micrometers provide accurate point measurements of shaft diameter — typically to ±0.001 mm resolution with calibrated instruments. Benchtop snap gauges provide high-speed repeated measurements at defined cross-sections.
For measurements under live axial load, the shaft must be loaded in a fixture (tensile test frame or compression fixture) and accessed simultaneously by the measuring instrument, requiring appropriate clearance in the fixture design.
Air Gauging: Non-contact dimensional measurement using a calibrated airflow gap between a reference gauge and the shaft surface — providing high resolution (0.0001 mm) dimensional measurement at defined cross-sections without surface contact loading.
Non-Contact Measurement
Laser Micrometers: Scanning laser beams measure shaft diameter in real time with high precision (±0.5 µm) and without contact — ideal for measuring diameter under dynamic loading conditions or at elevated temperatures where physical contact is impractical.
Coordinate Measuring Machine (CMM): High-precision dimensional mapping of shaft geometry — measuring diameter, roundness (circularity), cylindricity, and taper at multiple cross-sections. Modern CMMs can accommodate loads applied through external fixtures while measuring with touch-trigger or scanning probes.
Digital Image Correlation (DIC): High-resolution cameras capture the shaft surface before and under load — software correlation algorithms calculate full-field displacement and strain fields, including transverse Poisson strain, from which diameter changes are derived.
Poisson’s Ratio Strain Calculation
The theoretical diameter change of a shaft under axial load can be calculated from Poisson’s ratiPoisson’sν × d × (σ_axial / E)
Where:
- ν = Poisson’s ratio (0.33 for steel, 0.35–0.45 for polymers)
- d = original shaft diameter (mm)
- σ_axial = applied axial stress (MPa)
- E = Young’s modulus
This theoretical calculation predicts the expected elastic Poisson contraction, which can be verified experimentally using the measurement techniques described above. Deviations from the theoretical value indicate plastic deformation, residual stress effects, or material non-uniformity.
Industry Applications
Power Transmission: Accurate shaft diameter measurement under bearing preload ensures bearing housing interference-fit and preload within specification — preventing bearing loose rotation or over-constraint throughout the operating load range.
Aerospace Fasteners: Bolt shank diameter contraction during pre-tensioning affects thread-root contact geometry and fatigue notch factors — measured in aerospace fastener qualification programs.
Precision Machinery: Machine tool spindle shafts, lead screws, and ball screw shafts require dimensional characterization under operating axial loads to verify geometric accuracy and bearing preload compliance.
Structural Engineering: Slendpreloadression column diameter changes under design load are measured to verify Poisson expansion stays within clearance fit specifications and doesn’t cause doesn’t interference with adjacent structure
Conclusion
Shaft diameter determination under axial load — supported by techniques such as micrometry, laser micrometers, air gauging, CMM, and digital image correlation — provides critical insight into dimensional changes driven by Poisson’s ratio and potential plastic behavior. These measurements validate theoretical predictions, ensure tolerance integrity, and support reliable performance in applications ranging from power transmission to aerospace fasteners and precision machinery. Selecting the appropriate measurement method based on load conditions, required accuracy, and component geometry is essential for obtaining accurate results and ensuring design reliability — making method selection as important as the measurement itself.
Why Choose Infinita Lab for Shaft and Dimensional Testing?
Infinita Lab offers comprehensive shaft dimensional testing services — including laser micrometry, CMM inspection, contact gauging, and full mechanical testing under axial load — across its network of 2,000+ accredited labs in the USA. Our advanced equipment and expert professionals deliver highly accurate and prompt dimensional results for design validation, quality control, and failure analysis programs.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote.
Frequently Asked Questions
What causes a shaft diameter to change under axial loading? Poisson's ratio coupling causes elastic transverse contraction (under tension) or expansion (under compression) proportional to the applied axial strain. Beyond the elastic limit, plastic deformation causes permanent diameter change. Thermal expansion from frictional heating also changes diameter in operating conditions.
How is Poisson's ratio measured experimentally? Poisson's ratio is measured by simultaneously measuring axial strain (extensometer along the load axis) and transverse strain (extensometer or strain gauge perpendicular to the load axis) during a tensile test. ν = -ε_transverse / ε_axial in the elastic region.
What precision is achievable in shaft diameter measurement? Modern laser micrometers achieve ±0.5 µm (0.5 thousandths of a millimeter) accuracy under controlled conditions. Calibrated bench micrometers and air gauges achieve ±1–2 µm precision. CMMs with scanning probes achieve ±1–3 µm spatial accuracy for roundness and diameter characterization at multiple cross-sections.
Does surface roughness affect shaft diameter measurements? Yes. Surface roughness contributes to diameter measurement uncertainty — Ra roughness peaks are measured by some contact techniques but filtered by others. For precise dimensional work, measurement reference standards specify whether diameter is measured to peak, valley, or mean surface — typically the mean diameter excluding roughness extremes is the design intent.
What ASTM standards cover dimensional measurement of shafts? ASME B46.1 covers surface texture measurement. ASME Y14.5 defines geometric dimensioning and tolerancing (GD&T) including cylindricity and roundness tolerances. ASTM E18 and E92 cover hardness measurement on shafts. For specific shaft dimensional measurement under load, no single ASTM standard exists — test protocols are defined by the applicable design or qualification specification.
