How to Evaluate Pavement: Testing Methods, Standards & Performance Criteria
Pavement core extraction and material evaluation per ASTM and AASHTO standardsWhy Pavement Evaluation Matters
Road and airfield pavement represents one of the largest categories of investment in engineered infrastructure globally. The performance, safety, and longevity of pavement systems — asphalt concrete (flexible pavement) and portland cement concrete (rigid pavement) — directly affect transportation efficiency, safety, and the economic cost of maintenance and rehabilitation programs.

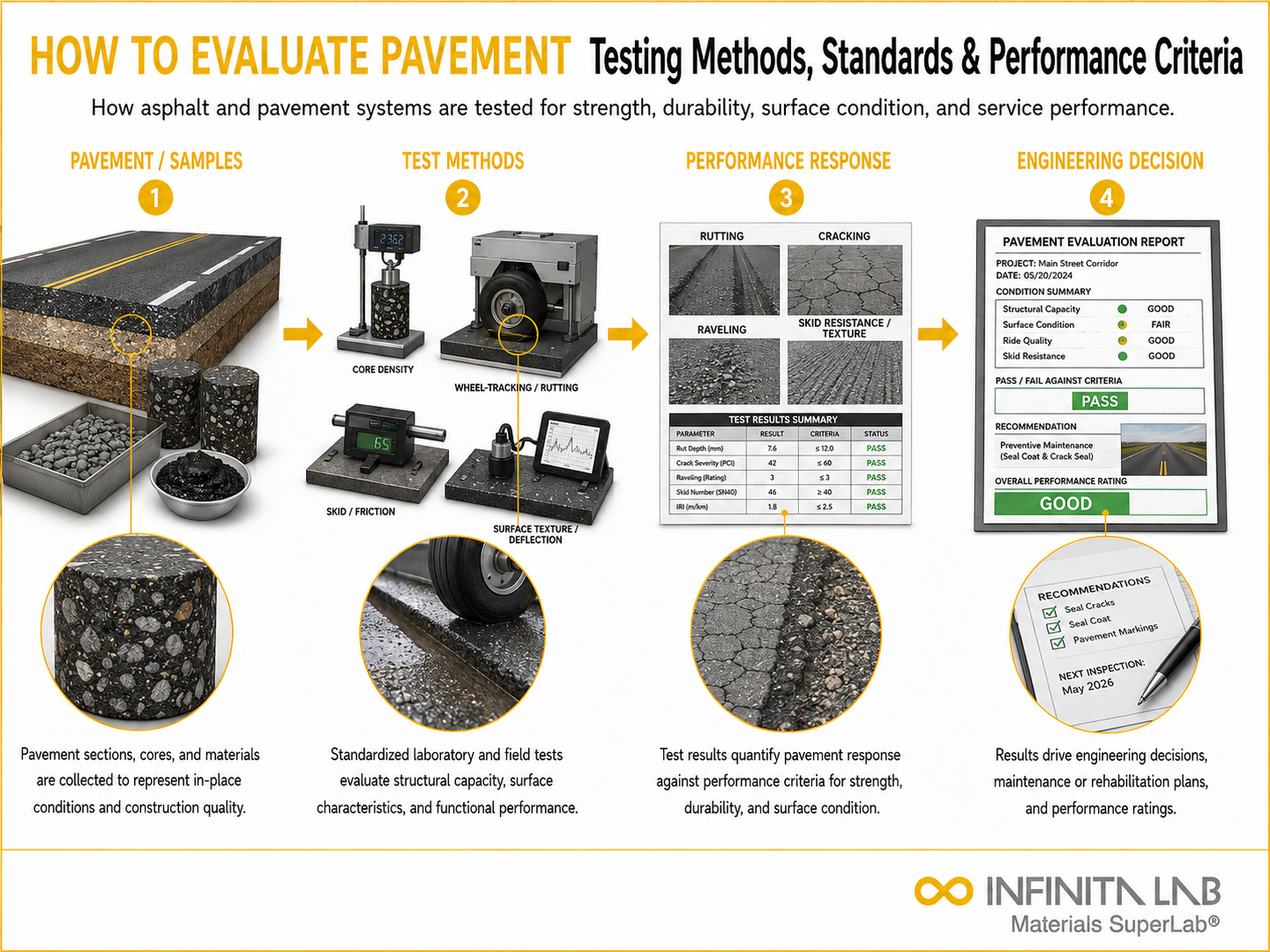

Pavement material testing and structural evaluation provide the data needed to design new pavements correctly, monitor in-service pavement condition, time preventive maintenance and rehabilitation interventions optimally, and investigate pavement failures — enabling transportation agencies and engineers to maximize pavement service life and protect public investment.
Asphalt Concrete (Flexible Pavement) Testing
Asphalt Binder Characterization
Performance Grade (PG) Classification (AASHTO M 320, ASTM D6373): The Superpave Performance Grade system characterizes asphalt binders by their performance temperatures — specifying the maximum high-temperature grade (rutting resistance) and minimum low-temperature grade (thermal cracking resistance) required for specific climate conditions.
Key binder tests within the PG system:
Dynamic Shear Rheometer (DSR) (ASTM D7175): Measures the binder’s G*/sinδ (complex shear modulus divided by phase angle) at high temperatures — characterizing rutting resistance. Also measures G* × sin δ at intermediate temperatures — to characterize fatigue cracking resistance.
Bending Beam Rheometer (BBR) (ASTM D6648): Measures creep stiffness and m-value at low temperatures — characterizing the binder’s resistance to thermal cracking. Lower stiffness and higher m-value at low temperatures indicate better low-temperature performance.
Rolling Thin Film Oven (RTFO) (ASTM D2872): Simulates short-term aging of asphalt binder during hot mix production — conditioning binder before further testing.
Pressure Aging Vessel (PAV) (ASTM R28): Simulates long-term in-service oxidative aging of asphalt binder — conditioning binder for intermediate and low-temperature performance testing.
Asphalt Mixture Design and Performance Testing
Marshall Stability and Flow (ASTM D6927): Classical mix design test measuring the stability (maximum load resistance) and flow (deformation at peak load) of compacted asphalt specimens — used for conventional mix design in many jurisdictions.
Superpave Gyratory Compactor (SGC) (ASTM D6925): Compacts cylindrical asphalt specimens by rotating them under pressure — producing specimens for volumetric mix design analysis (air voids, VMA, VFA) and performance testing.
Hamburg Wheel Track Test (AASHTO T 324): A loaded wheel repeatedly tracks across a submerged asphalt specimen at elevated temperature — measuring rutting depth (permanent deformation) and identifying stripping inflection points (moisture-induced stripping). Widely used by highway agencies for rut-resistant mixture qualification.
Semi-Circular Bend (SCB) Test (AASHTO T 393, ASTM E1820): Measures the fracture energy of asphalt mixtures — characterizing resistance to reflective and thermal cracking. Increasingly specified by state DOTs for low-temperature and fatigue cracking performance validation.
DynamiModulusus (|E|) Test (ASTM D3497, AASHTO T 378):* Measures the stiffness and phase angle of asphalt mixtures as a function of temperature and loading frequency — providing the fundamental input data for mechanistic-empirical pavement design (MEPDG).
Portland Cement Concrete (Rigid Pavement) Testing
Compressive Strength (ASTM C39): The most fundamental concrete quality control test — measuring the uniaxial compressive strength of standard cylindrical specimens at 28 days to verify mix design compliance.
Flexural Strength / Modulus of Rupture (ASTM C78): Third-point bending test measuring the flexural tensile strength of concrete beams — the primary structural design parameter for concrete pavements, which fail in tension at the bottom of the slab.
Splitting Tensile Strength (ASTM C496): An indirect tensile test providing a measure of concrete’s tensile capacity — used as a complement to compressive strength in pavement structural analysis.
Coefficient of Thermal Expansion (AASHTO T 336): Measures the volumetric change of hardened concrete per degree of temperature change — a critical input for joint spacing design in concrete pavements to control thermally induced cracking.
In-Service Pavement Structural Evaluation
Falling Weight Deflectometer (FWD): A nondestructive testing device that applies a pulse load to the pavement surface through a loading plate and measures the deflection bowl with geophones at multiple radial offsets. FWD data is backcalculated to determine layer moduli — the primary nondestructive tool for pavement structural condition assessment and overlay design.
Ground Penetrating Radar (GPR): Radar pulses penetrate pavement layers and reflect at layer interfaces. Layer thicknesses and subsurface conditions (voids, moisture, delaminations) are mapped rapidly along the pavement corridor.
Pavement Condition Index (PCI) — ASTM D6433: A standardized system for rating pavement distress (cracks, rutting, potholes, raveling) from visual inspection on a 0–100 scale — the foundation of pavement management systems for road networks.
Skid Resistance (ASTM E274, E303): Locked-wheel skid trailer and British Pendulum Tester measure pavement surface friction — a critical safety parameter, particularly for high-speed roads and runways.
Industry Applications
Highway Agencies: State DOTs use AASHTO and ASTM standardized mix design, performance testing, and structural evaluation to design, construct, and maintain the Interstate highway system and state road networks.
Airport Pavement: FAA Advisory Circulars reference ASTM and AASHTO methods for airfield pavement design, materials qualification, and condition evaluation — including specialized testing for high-load aircraft traffic.
Urban Streets: Municipal agencies use PCI-based pavement management systems to prioritize maintenance investments and extend pavement life through data-driven preventive maintenance programs.
Research and Academia: Pavement research programs at universities and national laboratories use the full suite of Superpave and advanced pavement testing methods to develop next-generation materials and design methods
Conclusion
Pavement testing and evaluation — incorporating methods such as ASTM D6373, ASTM D7175, ASTM D6927, ASTM C39, ASTM C78, and ASTM D6433, along with AASHTO standards — provides a comprehensive assessment of material properties, structural performance, and in-service condition of asphalt and concrete pavements. These techniques enable accurate mix design validation, durability prediction, and condition monitoring for roads, airfields, and urban infrastructure. Selecting the appropriate testing protocols based on pavement type, traffic loading, and environmental conditions is essential to ensure long-term performance, safety, and cost-effective maintenance—making the testing strategy as important as the performance outcomes themselves.
Why Choose Infinita Lab for Pavement Testing?
Infinita Lab offers comprehensive pavement material testing services — asphalt binder PG testing, Superpave mix design, Hamburg wheel tracking, SCB fracture testing, concrete compressive and flexural testing, and pavement structural evaluation support — across its network of 2,000+ accredited labs in the USA. Our advanced equipment and expert professionals deliver highly accurate and prompt results for DOT compliance, pavement design, and research programs.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote.
Frequently Asked Questions
What is the Superpave Performance Grade (PG) system for asphalt binders? The Superpave PG system classifies asphalt binders by their performance temperature range — e.g., PG 64-22 indicates the binder maintains adequate stiffness to resist rutting up to 64°C and adequate flexibility to resist thermal cracking at -22°C. PG grade selection is based on local climate data to match binder performance to environmental demands.
What is the Hamburg Wheel Track Test and what does it detect? The Hamburg Wheel Track Test (AASHTO T 324) rolls a steel wheel repeatedly over a submerged asphalt specimen at 50°C, measuring rutting depth vs. number of passes. It detects both permanent deformation (rutting) and moisture damage (stripping) — providing a combined performance indicator that is widely used by highway agencies for hot mix asphalt qualification.
What is the difference between asphalt pavement (flexible) and concrete pavement (rigid)? Flexible pavement uses asphalt concrete — distributing load through granular layers by aggregate interlock. Rigid pavement uses portland cement concrete slabs — resisting load through beam action with the concrete slab's flexural strength. Flexible pavements require periodic overlays; rigid pavements typically last 30–40 years but require joint maintenance and slab repairs.
What is the Falling Weight Deflectometer (FWD) used for? FWD applies a standardized impulse load to the pavement surface and measures deflections at multiple distances — from which layer moduli are backcalculated using computer programs. FWD data guides overlay design, identifies structurally deficient sections, and supports pavement management decisions without requiring core sampling or excavation.
What ASTM standard governs pavement condition rating? ASTM D6433 defines the Pavement Condition Index (PCI) — a standardized distress survey method for asphalt and concrete pavements. Visual distress quantities (by type and severity) are measured and converted to a 0–100 PCI score, where 100 = perfect condition and 0 = completely failed. PCI is the standard tool for pavement management systems worldwide.
