IC Failure Analysis Using High-Resolution X-Ray: Technique & Applications
Introduction to IC Failure Analysis
Integrated circuit (IC) failure analysis is a systematic process used to determine the root cause of electronic component failures. As semiconductor devices become increasingly miniaturised and complex, identifying defects without destroying the component has become critical. High-resolution X-ray imaging has emerged as one of the most powerful non-destructive tools in the IC failure analysis toolkit.
Industries including consumer electronics, automotive electronics, telecommunications, aerospace, and defence depend on reliable ICs. Failure analysis helps manufacturers improve design, process, and reliability, while protecting end users from safety risks.
What Is High-Resolution X-Ray Imaging?
High-resolution X-ray imaging uses penetrating X-ray radiation to generate two-dimensional or three-dimensional images of internal component structures without physical sectioning. Unlike optical microscopy, X-ray imaging can see through packaging materials to reveal internal bond wires, solder joints, die attach layers, and substrate connections.
Modern systems offer spatial resolutions below 1 micron, enabling the detection of even the smallest voids, cracks, delaminations, and misaligned features inside IC packages.
Types of X-Ray Systems Used in IC Failure Analysis
2D X-Ray (Radiography)
Provides planar transmission images of the component. Best suited for detecting missing solder balls, large voids, broken bond wires, and gross structural anomalies.
3D Computed Tomography (CT)
Generates volumetric images by acquiring multiple 2D projections at different angles and reconstructing them computationally. Ideal for complex multi-layer packages, 3D ICs, and advanced packaging formats like flip chips and BGAs.
Laminography
A variant of CT optimised for flat, large-area samples such as PCBs. It provides cross-sectional imaging of specific layers without interference from overlapping structures.
Common Defects Detected by X-Ray Analysis
Defect Type | X-Ray Detection Method |
Solder joint voids | 2D/CT X-ray |
Bond wire shorts/opens | 2D X-ray |
Die tilt and misalignment | CT |
Delamination in underfill | CT |
Tin whiskers | High-resolution 2D |
Package cracks | CT |

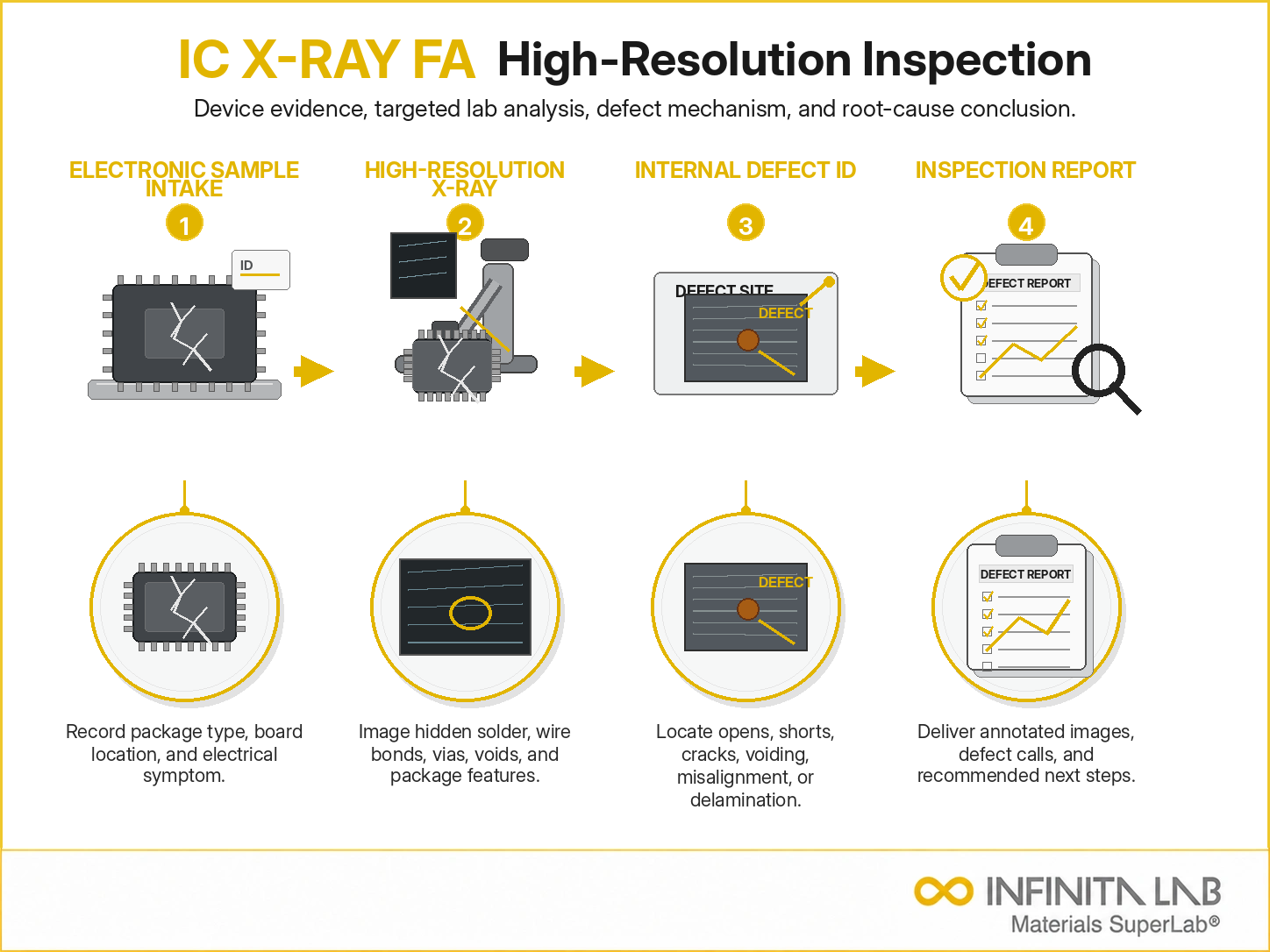

Process Flow for IC X-Ray Failure Analysis
- Receipt and documentation — Record component ID, failure description, and history.
- Non-destructive X-ray inspection — Image the component before any physical intervention.
- Defect localisation — Use X-ray findings to map the defect location.
- Correlation with electrical data — Correlate X-ray findings with failure signatures (open, short, leakage, parametric shift).
- Further analysis (if required) — Proceed to FIB cross-section, SEM, or EDS for confirmation.
Benefits of X-Ray Analysis in IC Failure Analysis
- Non-destructive: The component is preserved for further testing.
- Fast: Modern X-ray systems complete a scan in minutes.
- High sensitivity: Sub-micron resolution detects defects invisible to optical tools.
- 3D capability: CT provides volumetric defect mapping for complex packages.
Applications Across Industries
From automotive ECUs and ADAS sensor ICs to aerospace avionics and medical implant electronics, high-resolution X-ray failure analysis supports quality assurance, warranty return analysis, incoming inspection, and counterfeit detection.
Conclusion
High-resolution X-ray imaging has become an indispensable tool in IC failure analysis, enabling precise, non-destructive insight into complex internal structures. As semiconductor packaging continues to advance, its ability to detect hidden defects quickly and accurately plays a vital role in improving product reliability, reducing failure risks, and supporting continuous innovation across critical industries.
Why Choose Infinita Lab for IC Failure Analysis Using High-Resolution X-Ray?
At the core of our capability is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types. From advanced metrology (SEM, TEM, RBS, XPS) to high-resolution X-ray and CT systems, we give clients unmatched flexibility, specialisation, and scale.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
Is X-ray analysis truly non-destructive for IC components? Yes. X-ray imaging does not alter the physical or electrical properties of the component. The component can be further tested or analyzed after X-ray inspection.
What package types can be analyzed with X-ray? X-ray can analyze virtually all package types including QFN, BGA, flip chip, CSP, SiP, PoP, and through-hole devices.
How small a defect can high-resolution X-ray detect? Modern microfocus X-ray systems can resolve features below 1 micron. Nanofocus systems used in CT can achieve resolutions of 200–500 nm for very small components.
Can X-ray distinguish between a void and a crack in solder? 2D X-ray can identify density differences consistent with voids. CT provides 3D volumetric data that can differentiate void morphology from planar crack defects more reliably.
When should X-ray analysis be used vs. physical cross-sectioning? X-ray is preferred first because it is non-destructive and guides cross-sectioning to the exact defect location, minimizing sample loss and analysis time.
