Compression Deflection Testing: Method, Standards & Material Applications

When a foam seat cushion supports body weight, a rubber gasket compresses to seal a flange joint, or a vibration isolator pad absorbs equipment loading, the material is undergoing compression deflection — deforming in response to applied compressive load. Compression deflection testing quantifies this load-deformation relationship, providing the data needed to design, specify, and quality-control flexible polymeric materials for load-bearing applications. In the rubber & polymers industry, compression deflection is a fundamental property measurement for foams, rubbers, elastomers, and cushioning materials.

What Is Compression Deflection?

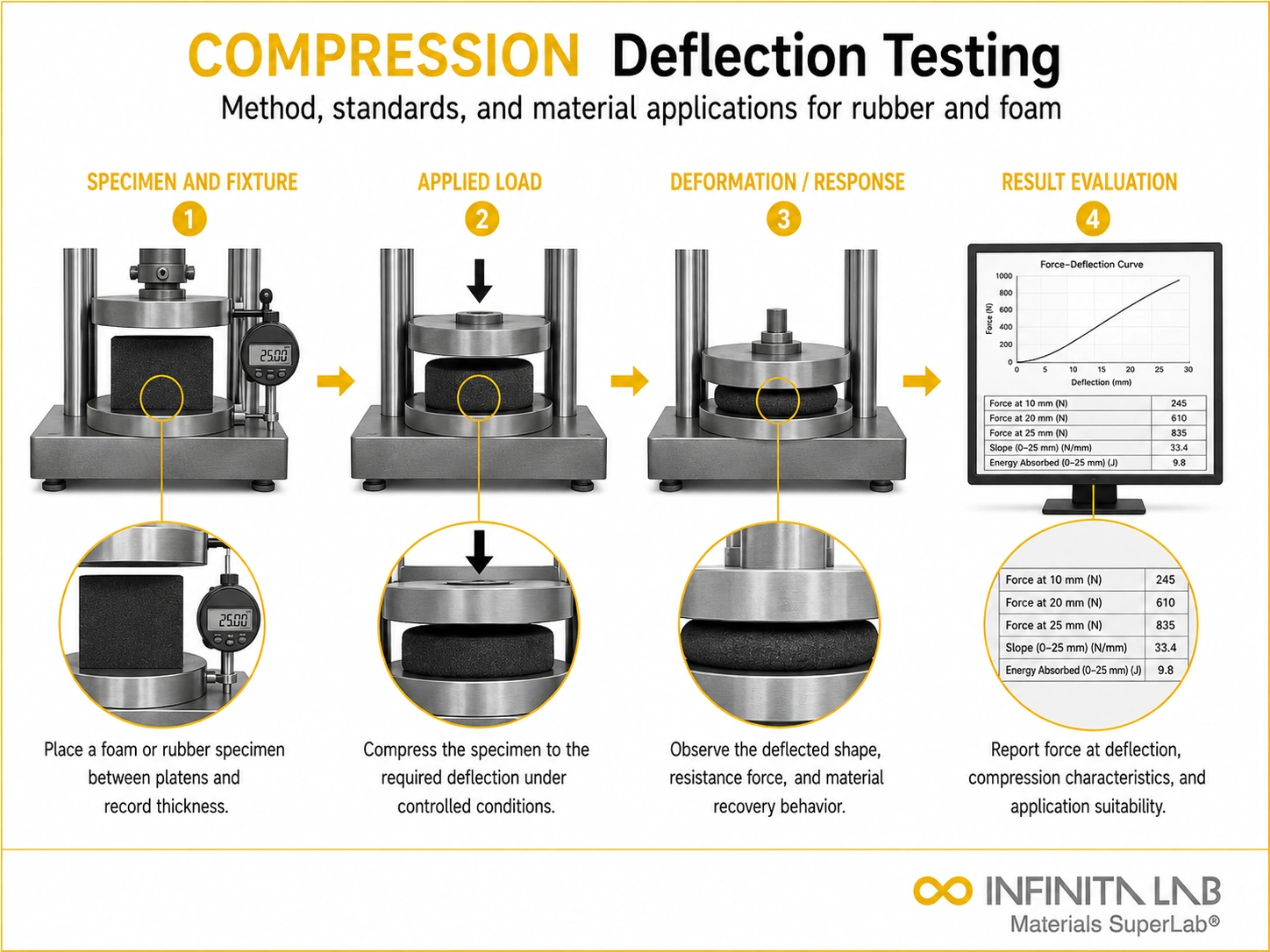

Compression deflection characterizes the relationship between the compressive load applied to a flexible material and the resulting deformation (deflection) — typically expressed as the stress required to produce a defined strain (e.g., 25% or 50% compression):

Compression Deflection Value = Compressive Stress at Defined Strain Level

Units: kPa or psi at a specified % compression (e.g., “25% compression deflection = 4.0 kPa”)

Unlike compression modulus (which describes the initial linear relationship between stress and strain), compression deflection characterizes the material’s response at practically relevant deformation levels, where most flexible-material applications operate.

Standard Test Methods

ASTM D1056 — Flexible Cellular Rubber

ASTM D1056 specifies compression deflection testing for flexible cellular rubber (sponge rubber and expanded rubber). Specimens are compressed to 25% of their original thickness at a defined rate, and the compressive stress is recorded. Classification grades (1A1 through 4C4) combine density, compression deflection range, and other properties into a unified specification system widely used for weather seals, vibration mounts, and gasket materials.

ASTM D3574 — Flexible Cellular Polyurethane Foam

ASTM D3574 Test B1 (Indentation Force Deflection, IFD) and Test B2 (Compression Force Deflection, CFD) characterize polyurethane foam load-bearing behavior:

IFD (Indentation Force Deflection) — measures the force required to indent a defined indentor (round plate, 323 cm² area) to 25% and 65% of foam thickness. IFD at 25% deflection is the primary comfort rating for seating foam — higher IFD indicates firmer foam. The 65%/25% IFD ratio provides the “support factor,” characterizing the foam’s ability to increase resistance with increasing deflection.

CFD (Compression Force Deflection) — measures the stress required to compress the complete foam specimen (not just an indented area) to defined strain levels — used for technical foam applications including acoustic panels, packaging, and vibration isolation.

ASTM D575 — Rubber Properties in Compression

ASTM D575 characterizes compression deflection of solid rubber — Method A (constant rate of deflection) and Method B (constant deflection increment). The resulting load-deformation curves provide compression deflection values at specified strain levels and the compression modulus in the linear region — data used for rubber gasket and seal design.

ISO 3386-1 — Flexible Cellular Polymeric Materials

ISO 3386-1 is the international standard for compressive stress/strain measurement of flexible cellular polymeric materials — the European/international counterpart to ASTM D3574 Test B2, used for technical foam specification in automotive, furniture, and industrial applications globally.

Applications of Compression Deflection Data

Seating and Cushioning Design

Foam seating — automotive seats, office chairs, mattresses, and upholstered furniture — is designed using compression-deflection data to achieve target comfort characteristics. The combination of IFD at 25% deflection (initial feel) and the support factor (ability to prevent bottoming out at higher loads) defines the seating experience. Furniture manufacturers specify foam grades by their ASTM D3574 IFD values and use compression-deflection data in finite-element simulations of seating comfort.

Vibration Isolation and Mounts

Elastomeric vibration isolation pads and mounts are designed to operate within a specific compression-deflection range to achieve the target natural frequency for vibration isolation. The static stiffness (load/deflection) at the operating point determines the natural frequency, which must be well below the disturbing frequency for effective isolation. Compression deflection testing establishes the stiffness at the design operating point for mount verification.

Gasket and Seal Design

Rubber and foam gasket compression-deflection curves define the relationship between sealing force and gasket compression, a critical factor in flanged joint design. Insufficient compression deflection resistance leads to insufficient sealing contact force; excessive resistance makes assembly difficult and may damage mating flanges. Target compression deflection ranges are specified in gasket procurement documents and verified by testing.

Packaging Cushioning

Foam packaging cushions protect products from drops and impact shock by absorbing energy through compression. Compression deflection curves, combined with dynamic cushioning performance data (ASTM D1596), enable the selection of a foam grade and thickness that limit transmitted shock acceleration to below the product’s fragility level across the range of expected drop heights.

Factors Affecting Compression Deflection Values

Density

For foams of the same chemistry and cell structure, compression deflection scales approximately with density — denser foams are firmer. However, density alone does not determine compression deflection; cell size, cell structure (open vs. closed), and polymer modulus are equally important.

Temperature

Compression deflection of rubber and foam increases significantly at low temperatures, as materials become stiffer, and decreases at elevated temperatures, as materials soften. Testing at service-temperature extremes — particularly for automotive and outdoor applications — is essential to obtain representative data.

Rate of Loading

Viscoelastic materials (all foams and rubbers) show rate-dependent compression deflection — faster loading rates produce higher apparent stiffness due to viscous flow resistance. ASTM standards specify loading rates to ensure reproducibility between laboratories.

Conclusion

Compression deflection testing translates material load-deformation behavior into actionable design data — enabling engineers to specify the right foam, rubber, or elastomer grade for seating comfort, vibration isolation, gasket sealing, and packaging protection. Standardized measurement per ASTM D1056, D3574, D575, and ISO 3386-1 ensures consistent, comparable results across suppliers and applications, directly supporting product performance validation and procurement specification.
