Carbon Nanotube Reinforced Composites: Enhancing Strength & Testing
The quest for materials that combine exceptional strength, low weight, and multifunctional performance has driven nanotechnology toward one of its most transformative applications: carbon nanotube (CNT) reinforced composites. By incorporating carbon nanotubes into polymer, ceramic, or metal matrices, engineers and material scientists are unlocking mechanical, thermal, and electrical properties that conventional composites cannot achieve. This blog explores how CNT reinforced composites work, the properties they enhance, their testing requirements, and the industries benefiting from this technology.
What Are Carbon Nanotubes?
Carbon nanotubes are cylindrical nanostructures made of rolled graphene sheets, characterised by extraordinary mechanical stiffness, tensile strength in the range of several hundred GPa, high electrical conductivity, and exceptional thermal conductivity. Their low thermal expansion coefficient (CTE), high specific surface area, and nanoscale dimensions make them uniquely effective reinforcements when dispersed uniformly within a matrix material.
CNTs are classified into single-walled carbon nanotubes (SWCNTs) and multi-walled carbon nanotubes (MWCNTs). Both types have been studied as reinforcements for polymer matrix composites, ceramics, and metals, with MWCNT-reinforced polymer composites being the most commercially relevant.
How CNTs Enhance Composite Properties
Mechanical Strength and Stiffness
Even at low loading fractions (below 5 wt%), uniformly dispersed CNTs can significantly increase the tensile strength, stiffness, and interlaminar shear strength of a composite. CNTs act as nano-scale load-carrying elements, transferring stress from the matrix to the highly stiff nanotube network. The key to realising these gains lies in achieving adequate CNT dispersion and strong interfacial bonding between the nanotube surface and the polymer matrix.
Thermal Properties
CNTs have a low CTE and high axial thermal conductivity. In polymer composites, CNT addition can suppress thermal expansion, improve heat dissipation, and raise the glass transition temperature (Tg) of the matrix — a critical parameter for applications that involve elevated service temperatures. DSC (Differential Scanning Calorimetry) and DMA (Dynamic Mechanical Analysis) are commonly used to characterise these thermal transitions in CNT-reinforced composites.
Electrical Conductivity
Polymers are inherently insulating, but CNT addition can create percolating conductive networks within the matrix at low loading fractions, enabling applications in electromagnetic interference (EMI) shielding, antistatic packaging, and multifunctional structural components.
Fabrication Challenges
The primary challenge in realising the theoretical benefits of CNTs in composites is achieving uniform dispersion. CNTs naturally form dense aggregates due to strong van der Waals forces. Overcoming this requires surface functionalization of the CNT surface — chemical or physical modification to improve compatibility with the matrix — combined with high-shear mixing, sonication, or other dispersion methods during processing.

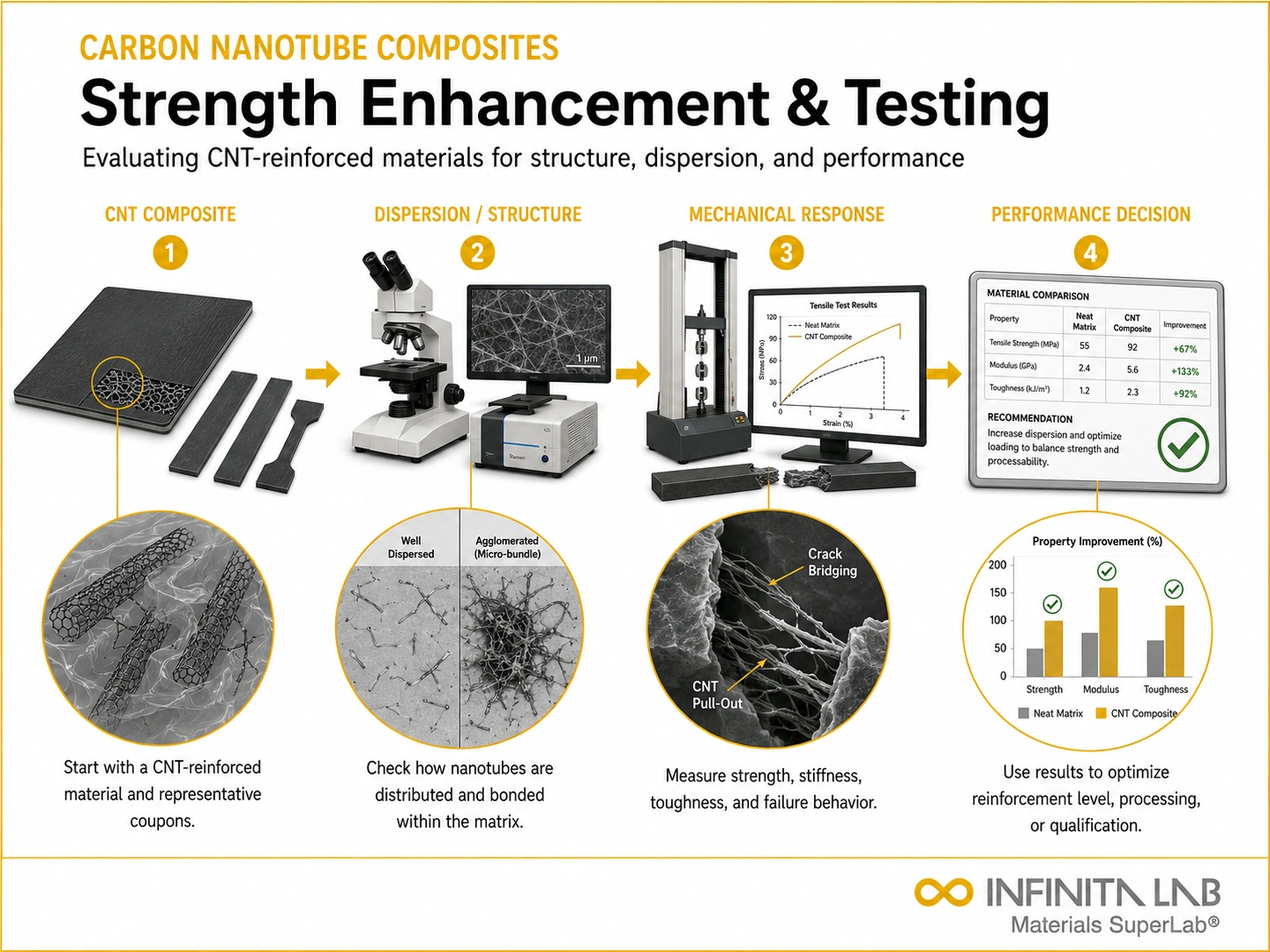

Characterisation and Testing of CNT Composites
Accurate characterisation is essential to validate performance claims and ensure quality in CNT composite production. Key testing methods include:
Mechanical Testing: Tensile, flexural, compressive, and interlaminar shear strength testing to quantify the mechanical improvements conferred by CNT reinforcement.
Differential Scanning Calorimetry (DSC): Measures glass transition temperature, crystallisation behaviour, and curing characteristics — essential for confirming that CNT addition modifies the thermal profile of the matrix polymer.
Scanning Electron Microscopy (SEM): Evaluates CNT dispersion quality and interfacial bonding morphology within the composite cross-section.
Thermal Gravimetric Analysis (TGA): Quantifies thermal stability and CNT loading fraction by tracking mass loss as a function of temperature.
Dynamic Mechanical Analysis (DMA): Characterises viscoelastic behaviour, storage modulus, and loss factor as functions of temperature, confirming the impact of CNTs on matrix dynamics.
Industry Applications of CNT Reinforced Composites
Aerospace and Defence: Lightweight structural panels, satellite components, radar-absorbing materials, and EMI shielding applications where every gram and watt of efficiency matters.
Automotive: Body panels, battery enclosures for electric vehicles, and structural components where weight reduction and improved mechanical performance are simultaneously required.
Electronics: Antistatic enclosures, thermally conductive substrates, and flexible electronic packaging materials.
Energy: Wind turbine blade reinforcements and fuel cell membranes, where multifunctional performance is essential.
Sporting Goods and Consumer Goods: High-performance frames, helmets, and protective equipment where superior specific strength is the primary design driver.
Conclusion
Carbon nanotube (CNT) reinforced composites represent a major advancement in modern materials engineering by combining lightweight structures with exceptional mechanical, thermal, and electrical performance. When properly dispersed and integrated within the matrix, CNTs significantly enhance strength, stiffness, conductivity, and thermal stability. As industries continue to demand high-performance multifunctional materials, CNT composites are playing an increasingly important role in aerospace, automotive, electronics, and energy applications.
Why Choose Infinita Lab for Composite Testing?
At the core of this breadth is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types. From advanced metrology (SEM, TEM, RBS, XPS) to mechanical, dielectric, environmental, and standardised ASTM/ISO testing, we give clients unmatched flexibility, specialisation, and scale. You’re not limited by geography, facility, or methodology—Infinita connects you to the right testing, every time.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What are carbon nanotube reinforced composites? CNT reinforced composites are materials in which carbon nanotubes are dispersed within a polymer, ceramic, or metal matrix to enhance mechanical, thermal, or electrical properties beyond what the base matrix can achieve.
How do CNTs improve composite strength? CNTs act as nano-scale reinforcements that transfer mechanical stress from the matrix to the nanotube network, increasing tensile strength, stiffness, and interlaminar shear strength — even at loading fractions below 5 wt%.
What tests are used to characterize CNT composite properties? Key tests include tensile and flexural mechanical testing, DSC for thermal transitions, SEM for dispersion morphology, TGA for thermal stability and CNT loading, and DMA for viscoelastic behavior.
What is the main fabrication challenge for CNT composites? Achieving uniform CNT dispersion within the matrix is the primary challenge, as CNTs naturally form aggregates. Surface functionalization and high-shear processing techniques are used to overcome this.
Which industries use CNT reinforced composites? Aerospace, automotive, electronics, energy, and advanced consumer goods industries are the primary users of CNT reinforced composite materials.
