Case Study: Acoustic Emission Testing of Polymer Composites for Damage Detection
Small-angle neutron scattering (SANS) data revealing nanostructure and phase morphology in polymerWhat Is Acoustic Emission Testing?

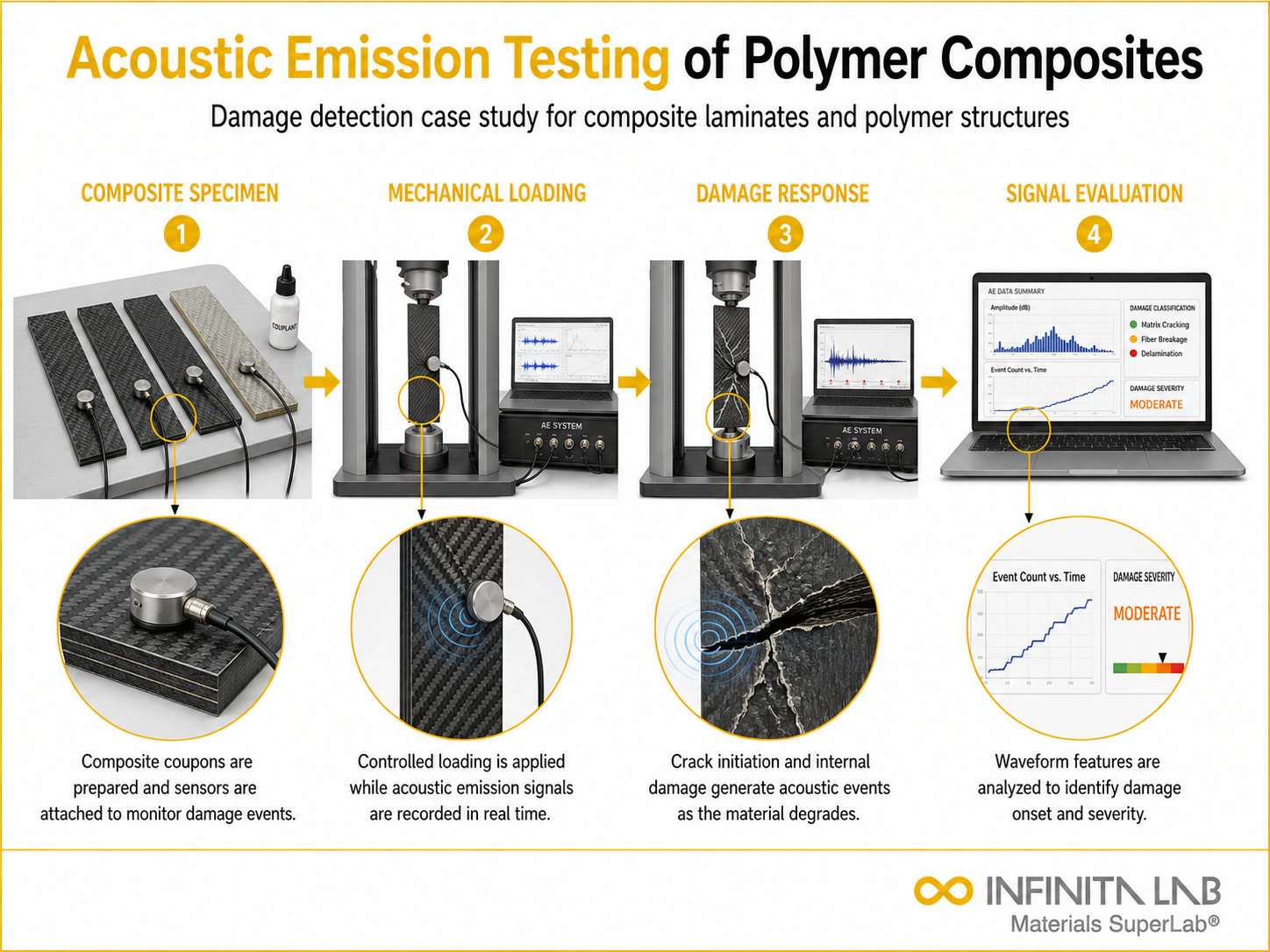

Acoustic Emission (AE) testing is a passive non-destructive testing technique that detects transient elastic stress waves generated within a material when it undergoes deformation, cracking, delamination, or other damage events. Unlike active NDT methods that send energy into a structure, AE testing listens — piezoelectric sensors mounted on the component surface capture the high-frequency stress waves (50 kHz to 1 MHz) emitted by damage mechanisms as they occur in real time during loading or pressurization.
For the aerospace, automotive, wind energy, and sporting goods industries, AE testing of polymer composites provides unparalleled insight into damage initiation, accumulation, and progression under service-representative loading conditions.
Damage Mechanisms Detected by AE in Composites
Matrix Cracking
The first and most common damage mode in fiber-reinforced composites under tensile or flexural loading, matrix cracking generates AE signals with relatively low amplitude (40–55 dB) and high frequency content. These cracks reduce stiffness and provide pathways for moisture ingress but do not immediately cause catastrophic failure.
Fiber-Matrix Debonding
As matrix cracks propagate to fiber-matrix interfaces, debonding occurs — generating AE signals with intermediate amplitude (55–70 dB). Debonding reduces load transfer efficiency between fibers and matrix, progressively degrading composite strength.
Delamination
Interlaminar delamination generates high-amplitude (65–85 dB), low-frequency AE signals. Delaminations between plies are the most structurally critical damage mode in laminated composites, dramatically reducing compression-after-impact (CAI) strength and creating disbond growth under fatigue loading.
Fiber Fracture
Fiber breakage produces the highest amplitude AE signals (>80 dB) and is the most structurally significant event, directly consuming load-bearing capacity. Fiber fracture events signal imminent laminate failure and are closely monitored in proof testing of pressure vessels, pipes, and structural panels.
AE Signal Parameters and Pattern Recognition
Each AE event is characterized by: amplitude, rise time, duration, ring-down count, energy, and frequency content. Statistical clustering techniques — including k-means clustering and neural network classification — group AE signals by damage type based on multi-parameter feature vectors, enabling discrimination of matrix cracking, delamination, and fiber fracture events throughout the loading history.
Felicity Ratio and Kaiser Effect
The Kaiser Effect states that AE is not generated upon reloading until the previous maximum load is exceeded. Violation of the Kaiser Effect — the Felicity Effect — indicates cumulative damage. The Felicity Ratio (load at first AE emission on reload / previous maximum load) quantifies damage severity; ratios below 0.95 indicate significant accumulated damage in composite pressure vessels per ASME Section X.
Case Study: AE Monitoring of a CFRP Pressure Vessel
In a representative case, a 300 mm diameter CFRP pressure vessel was hydrostatically pressurized from 0 to 200 bar while 8 AE sensors monitored the shell. Matrix cracking signals emerged at 40 bar (20% burst pressure). Delamination events were first detected at 120 bar, localized to a polar boss interface. Fiber fracture events appeared at 175 bar, clustered at the boss. Burst occurred at 198 bar. AE source location mapped all critical events within ±10 mm of post-burst damage sites, validating AE as an accurate damage location tool.
Conclusion
Acoustic Emission Testing (AET) of polymer composites provides a powerful, real-time method for detecting and monitoring internal damage such as fiber breakage, matrix cracking, and delamination. By capturing stress-induced acoustic signals during loading, it enables early identification of failure mechanisms without damaging the component. This technique enhances reliability assessment, supports structural health monitoring, and helps optimize material performance, making it highly valuable for advanced engineering and quality assurance applications.
Why Choose Infinita Lab for Acoustic Emission Testing?
Infinita Lab addresses the most frustrating pain points in composite testing: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support — from AE testing and source location to full damage characterization reports — allowing engineering and R&D teams to focus on what matters most: innovation.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What types of composites are most suitable for AE testing? Carbon fiber, glass fiber, and aramid fiber-reinforced polymer composites in structures including pressure vessels, aircraft components, wind turbine blades, and automotive body panels are well-suited to AE testing. The method works for any material that generates detectable stress waves upon damage.
How is AE source location determined? AE source location uses time-of-arrival differences between signals detected at multiple sensors to triangulate the emission source, similar to seismic epicenter location. Accuracy depends on wave velocity (measured by pencil-break calibration), sensor spacing, and signal-to-noise ratio.
What is the Kaiser Effect and why is it important in composite testing? The Kaiser Effect — absence of AE on reloading until previous maximum load is exceeded — indicates undamaged or lightly damaged material. Violation (Felicity Effect) at low load ratios signals accumulated damage and is used per ASME Section X as an acceptance criterion for composite pressure vessel proof testing.
Can AE testing detect pre-existing defects in composites? AE detects active damage — events occurring under load. Pre-existing, stable defects that do not grow under the applied load do not generate AE. For pre-existing defect detection without loading, ultrasonic C-scan or thermography are more appropriate.
What standards govern AE testing of composite structures? ASTM E1067 (AE testing of fiberglass reinforced plastic resin tanks), ASTM E1419 (AE testing of filament wound pressure vessels), ASME Section V Article 12, and ASME Section X (fiber-reinforced plastic pressure vessels) govern AE testing procedures and acceptance criteria for composite structures.
